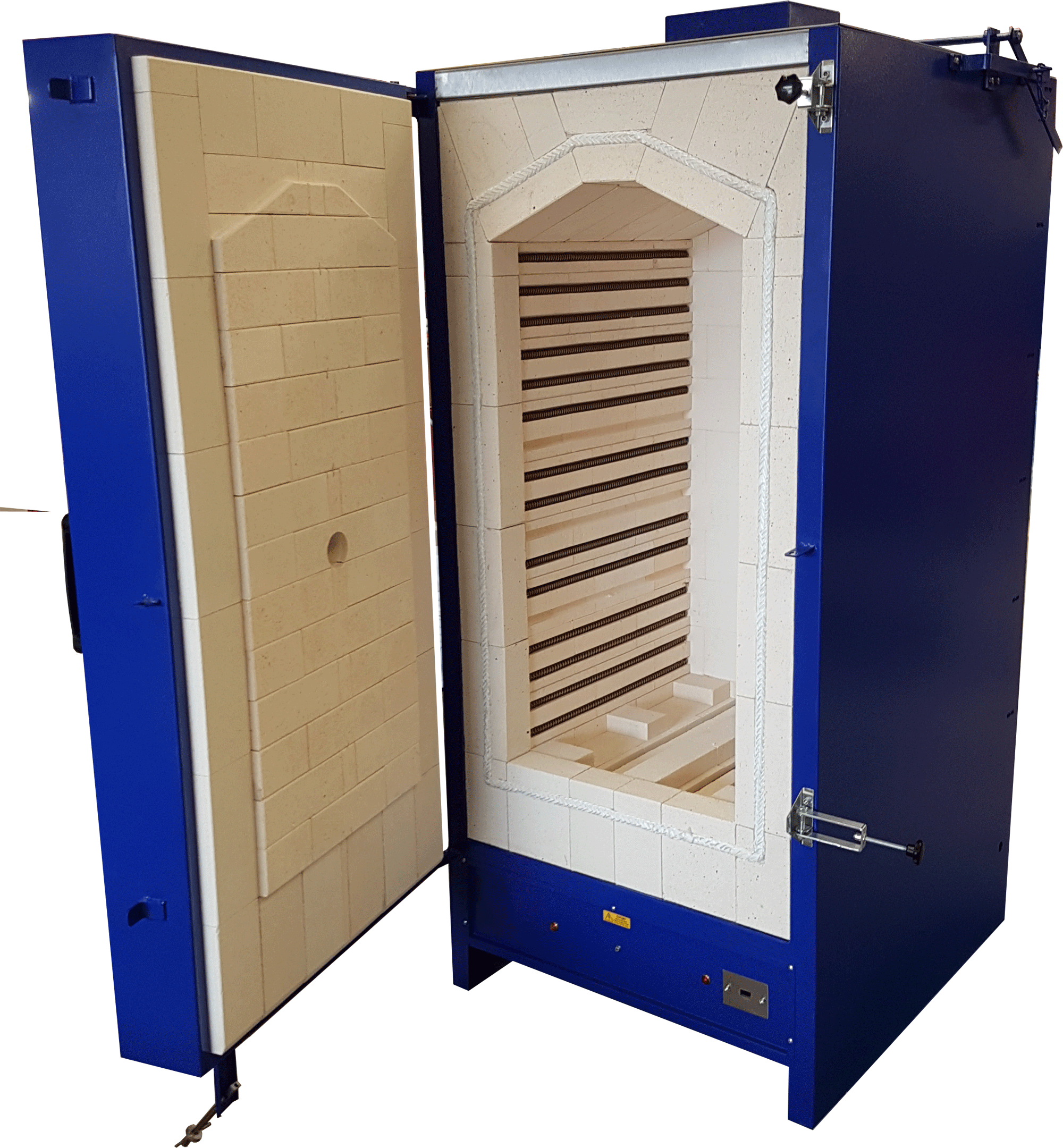

THE KC55 RANGE

Kilns in our KC55 range are made here in Stoke on Trent using traditional, time tested methods and techniques.

The kilns are made using the highest quality bricks and backing boards as efficiency is becoming more of an issue these days.

As with all of our kilns, function and durability take priority.

From top quality insulation, to top quality elements, to a controller that enables highly complex firings and Wi-Fi capability, this really is a seriously effective range of kilns.

Moreover, there is even the availability of trolley style floors! See KC-T55 range.

KC55/100

Internal size 460mm (wide) x 670mm (deep) x 980mm (High)

External Size 790mm (wide) x 1160mm (deep) x 1780mm (High)

Capacity 300Lts

Weight 480kg

Power 16KW (you should check that your power supply is suitable, and should be installed by a qualified electrician)

Amps 67.2A

Voltage 400v + N

Maximum Temperature 1315c

Controller included KCR32C (KCR32C WIFI optional)

KC55/114

Internal size 510mm (wide) x 670mm (deep) x 980mm (High)

External Size 850mm (wide) x 1160mm (deep) x 1780mm (High)

Capacity 335Lts

Weight 620kg

Power 16KW (you should check that your power supply is suitable, and should be installed by a qualified electrician)

Amps 67.2A

Voltage 400v + N

Maximum Temperature 1315c

Controller included KCR32C (KCR32C WIFI optional)

KC55/125

Internal size 610mm (wide) x 760mm (deep) x 760mm (High)

External Size 940mm (wide) x 1180mm (deep) x 1780mm (High)

Capacity 353Lts

Weight ??kg

Power 18.5KW (you should check that your power supply is suitable, and should be installed by a qualified electrician)

Amps 77.7A

Voltage 400v + N

Maximum Temperature 1315c

Controller included KCR32C (KCR32C WIFI optional)

KC55/150

Internal size 610mm (wide) x 760mm (deep) x 910mm (High)

External Size 940mm (wide) x 1180mm (deep) x 1780mm (High)

Capacity 424Lts

Weight 725kg

Power 21.5KW (you should check that your power supply is suitable, and should be installed by a qualified electrician)

Amps 90.3A

Voltage 400v

Maximum Temperature 1315c

Controller included KCR32C (KCR32C WIFI optional)

KC55/180

Internal size 610mm (wide) x 910mm (deep) x 910mm (High)

External Size 940mm (wide) x 1490mm (deep) x 1780mm (High)

Capacity 510Lts

Weight 740kg

Power 25.5KW (you should check that your power supply is suitable, and should be installed by a qualified electrician)

Amps 107A

Voltage 400v + N

Maximum Temperature 1315c

Controller included KCR32C (KCR32C WIFI optional)

KC55/250

Internal size 670mm (wide) x 910mm (deep) x 1140mm (High)

External Size 1010mm (wide) x 1490mm (deep) x 1950mm (High)

Capacity 710Lts

Weight ??kg

Power 32KW (you should check that your power supply is suitable, and should be installed by a qualified electrician)

Amps 135A

Voltage 400v + N

Maximum Temperature 1315c

Controller included KCR32C (KCR32C WIFI optional)

Still not big enough?
Please contact us an with your requirements and we will do our best to meet your needs.

The KCR32C is multi-program controller designed for glass, ceramics & pottery use. It is targeted towards glass use with 32 programs each of up to 32 segments. Each segment is a controlled heating/cooling ramp followed by a soak. It is supplied pre-programmed with 9 typical glass programs and 9 typical ceramics programs (which can be over-written).

The slow rate capability of the KCR32C, down to 1c per hour, makes it the perfect controller for complicated glass cycles.

KCR32C Controller features:

32 programs - each with up to 32 segments.
Each segment is a controlled heating/cooling ramp soak.
Suitable for glass or ceramics use.
Soak times up to nearly 100 hours.
Ramp rates from 1 to 999°C/hour full.
Program Pause & Segment Advance facilities.
Can be held remotely, allowing for an easy and comfortable programming process.

Keyboard lockable.
Delayed start facility - up to 4 days.
Power failure recovery.
Energy used display.
Event / Damper / Fan relay output.
Alarm relay with alarm buzzer.
Mains power switch.
Built in the United Kingdom.

KCR32C WIFI Controller (optional)

The KCR32CWIFi is internally the same as the KCR32C but has the capability to be accessed

and controlled remotely from your mobile device.

This is one of the most important advances in Kilncare kilns for many years.

Using Kilncares GATEway access site you can view how your kiln is running in real time. Stop the

firing or adjust programs all without even being in the same country let alone the same room.

The KCR32WIFI is also fitted with a USB port that allows programs to be entered that way direct from PC if required and also allows us to apply updates and run diagnostics without travelling to your kiln.

Internet access to view real time status and access data

The optional KCR32C WIFI allows the user to access the kiln in real time from anywhere with internet access via the Kilncare GATEway on our website. The benefits of this are obvious as there is no longer the need to travel to the studio or work place to see how the firing is proceeding or if indeed the firing is going as planned.

Also in the GATEway, which is unique to each user via password access, there is a firings library where past firings can be stored and named, a notes section and a log amongst other features.

ST535CWIFI controller (optional)

The ST535WIFI is a multi-zone controller designed for use on our larger kilns where total evenness of chamber temperature is much more difficult to maintain through simple kiln design alone. The controller monitors one section of the kiln and adjusts the other sections to maintain perfect chamber uniformity with regards to temperature.

The ST535WIFI can set as low as 0.1c per hour.

The rest of the ST535WIFI is as the KCR32CWIFI.

ST535CWIFI Controller features

Multi-zone control.
32 programs - each with up to 32 segments.
Each segment is a controlled heating/cooling ramp soak.
Suitable for glass or ceramics use.
Soak times up to nearly 100 hours.
Ramp rates from 1 to 999°C/hour full.
Program Pause & Segment Advance facilities.
Keypad lockable.

Kanthal A1 elements

The KC55 range, along with the vast majority of Kilncare kilns, utilises Kanthal A1 elements (which are widely regarded as the best quality elements available), ensuring unbeatable reliability and durability.

Over-fire and door switch safety

Each KC55 has a door safety cut off switch along with a contactor door cut off circuit, which also acts as an over fire protection circuit. As well as this, there is also an extra control contactor, which in combination with the over fire contactor and door safety switch makes the kiln extremely safe.

Arched roof (models KC55/114 and above)

Once you reach the 114 model, each KC55 kiln will have an arched roof, providing that extra strength needed to keep a robust interior.

Lockable Door Vent Hole

The door vent hole has a lockable swing plate that locks in the bung not allowing the bung to be taken out whilst it is at temperature.

This feature is a favourite of education establishments.

Highly reliable three section seal

This massively improves heat retention.
The first section of the door seal is a machined insert in the brick lid that puts a brake on the heat before it reaches the second section, a traditional brick on brick contact.

The third step is maintained by non-ceramic fibre that is set into a channel around the front face, which ensures it stays in place, unlike other methods of "Stick on" fibre seals which often tend to fall off.

Robust front face

The Front Face itself is made from "Hard" insulation bricks to reduce the damage caused by knocks and bumps during loading.

All of the kiln doors in the KC55 range are made of the same high grade insulation bricks as the chamber sides.

Permanent Seal Door Clamps

The actual sealing of the door is automatically adjusted every time the door is closed with the variable door clamps.

Manually operated roof vents or optional automatic vents

The roof vent is operated by a manual stainless steel damper box, automatic dampers are optional, and can be fitted to all KC55 kilns.

This allows the roof vents to be opened and closed multiple times throughout the duration of the firing at the temperatures required.

The opening and closing cycle is programmed into the controller which enables the user to start the kiln then not have to return to it for any action other than monitoring until the cycle is finished. Extremely useful on larger models where firings can last for much longer.

Optional GATEway app and Wi-Fi capability

The optional KCR32C WIFI allows the user to access the kiln in real time from anywhere through the GATEway mobile device app for Android or Apple, or anywhere with internet access via the Kilncare GATEway on our website. The benefits of this are obvious as there is no longer the need to travel to the studio or work place to see how the firing is proceeding or if indeed the firing is going as planned.

Also in the GATEway, which is unique to each user via password access, there is a firings library where past firings can be stored and named, a notes section and a log amongst other features.

Optional multi zone

The optional ST535WIFI is a multi-zone controller designed for use on our larger kilns where total evenness of chamber temperature is much more difficult to maintain through simple kiln design alone. The controller monitors one section of the kiln and adjusts the other sections to maintain perfect chamber uniformity with regards to temperature.

Optional restricted access split frame

The KC55 range can be specially built to be split into manageable sections if the kiln delivery includes stairs or very narrow access.

This option must be made at the point of order.

2 year warranty

The KC55 range comes with a 24 month warranty that applies for all parts excluding elements. The fact that we are able to offer this warranty on these kilns just goes to show how well made they are and how they are truly built to last.

Made In The UK

The KC55 range, along with all other Kilncare kilns, is made right here at Kilncare, in Stoke-on-Trent, United Kingdom.

Unrivalled aftercare

Here at Kilncare we really do pride ourselves on our customer service. We have a team of kiln experts at hand that will be there for you whenever you find yourself with any queries or worries who will do their absolute best to ensure that you can continue your pottery journey as problem free as possible.

We really do go the extra mile when it comes to customer service, which you can see for yourself by taking a quick look at our online reviews.
