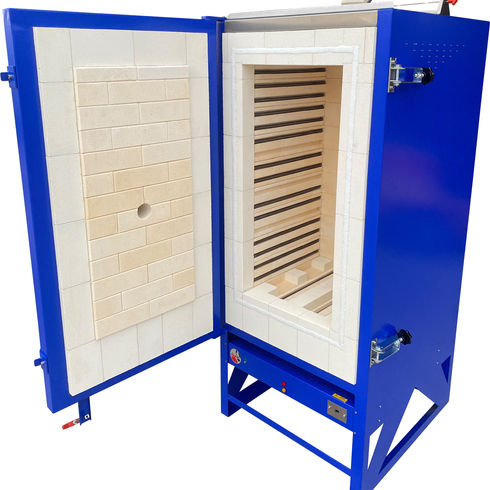

THE ARTIZAN RANGE

The new age of Kilncare front-loading kilns is here.

The old KC55 front-loading range had served so many of you well for many years, but as with all things over time, they must evolve.

A number of new features really take this range to the next level for reliability, durability and ease of use and it is brilliant to now have it available for you.

Kilns in our ARTIZAN range are made here in Stoke on Trent using traditional, time tested methods and techniques.

The kilns are made using the highest quality bricks and backing boards as efficiency is becoming more of an issue these days.

From top quality insulation, to top quality elements, to a controller that enables highly complex firings and the optional extra of Wi-Fi capability, this really is a seriously effective range of kilns.

For front-loading kilns with trolley floors, see KC-T55 range.

ARTIZAN 90

Internal size 380mm (wide) x 530mm (deep) x 460mm (High)

External Size 745mm (wide) x 1052mm (deep) x 1505mm (High)

Capacity 90Lts

Weight 280kg

Power 6/7KW (you should check that your power supply is suitable, and should be installed by a qualified electrician)

Amps 25/29A

Voltage 230/400v + N Single or 2 phase + N

Maximum Temperature 1315c

Controller included KCR32C (KCR32C WIFI optional)

Hinge side Left (please contact if right-hand hinge is required)

ARTIZAN 139

Internal size 380mm (wide) x 530mm (deep) x 680mm (High)

External Size 745mm (wide) x 1052mm (deep) x 1622mm (High)

Capacity 139Lts

Weight 378kg

Power 7.25/9.5KW (you should check that your power supply is suitable, and should be installed by a qualified electrician)

Amps 30.5/40A

Voltage 230/400v + N Single or 3 phase + N

Maximum Temperature 1315c

Controller included KCR32C (KCR32C WIFI optional)

Hinge side Left (please contact if right-hand hinge is required)

ARTIZAN 200

Internal size 460mm (wide) x 580mm (deep) x 750mm (High)

External Size 825mm (wide) x 1102mm (deep) x 1692mm (High)

Capacity 199Lts

Weight 438kg

Power 10/12KW (you should check that your power supply is suitable, and should be installed by a qualified electrician)

Amps 42/50A

Voltage 230/400v + N Single or 3 phase + N

Maximum Temperature 1315c

Controller included KCR32C (KCR32C WIFI optional)

Hinge side Left (please contact if right-hand hinge is required)

ARTIZAN 265

Internal size 460mm (wide) x 580mm (deep) x 980mm (High)

External Size 825mm (wide) x 1102mm (deep) x 1882mm (High)

Capacity 265Lts

Weight 504kg

Power 13.5KW (you should check that your power supply is suitable, and should be installed by a qualified electrician)

Amps 56.7A

Voltage 400v + N 3 phase + N

Maximum Temperature 1315c

Controller included KCR32C (KCR32C WIFI optional)

Hinge side Left (please contact if right-hand hinge is required)

For ARTIZANS 90 TO 200

The KCR32C is multi-program controller designed for glass, ceramics & pottery use. It is targeted towards glass use with 32 programs each of up to 32 segments. Each segment is a controlled heating/cooling ramp followed by a soak. It is supplied pre-programmed with 9 typical glass programs and 9 typical ceramics programs (which can be over-written).

The slow rate capability of the KCR32C, down to 1c per hour, makes it the perfect controller for complicated glass cycles.

KCR32C Controller features:

32 programs - each with up to 32 segments.
Each segment is a controlled heating/cooling ramp soak.
Suitable for glass or ceramics use.
Soak times up to nearly 100 hours.
Ramp rates from 1 to 999°C/hour full.
Program Pause & Segment Advance facilities.
Can be held remotely, allowing for an easy and comfortable programming process.

Keyboard lockable.
Delayed start facility - up to 4 days.
Power failure recovery.
Energy used display.
Event / Damper / Fan relay output.
Alarm relay with alarm buzzer.
Mains power switch.
Built in the United Kingdom.

KCR32C WIFI Controller (optional)

The KCR32C WIFi is internally the same as the KCR32C but has the capability to be accessed

and controlled remotely from your mobile device.

This is one of the most important advances in Kilncare kilns for many years.

Using Kilncares GATEway access site you can view how your kiln is running in real time. Stop the

firing or adjust programs all without even being in the same country let alone the same room.

The KCR32 WIFI is also fitted with a USB port that allows programs to be entered that way direct from PC if required and also allows us to apply updates and run diagnostics without travelling to your kiln.

Internet access to view real time status and access data

The optional KCR32C WIFI allows the user to access the kiln in real time from anywhere with internet access via the Kilncare GATEway on our website. The benefits of this are obvious as there is no longer the need to travel to the studio or work place to see how the firing is proceeding or if indeed the firing is going as planned.

Also in the GATEway, which is unique to each user via password access, there is a firings library where past firings can be stored and named, a notes section and a log amongst other features.

For ARTIZAN 265

The KCR32Z WIFI is a multi-zone controller designed for use on our larger kilns where total evenness of chamber temperature is much more difficult to maintain through simple kiln design alone. The controller monitors one section of the kiln and adjusts the other sections to maintain perfect chamber uniformity with regards to temperature.

The KCR32Z WIFI can set as low as 0.1c per hour.

The rest of the KCR32Z WIFI is as the KCR32C WIFI.

KCR32Z WIFI Controller features

Multi-zone control.
32 programs - each with up to 32 segments.
Each segment is a controlled heating/cooling ramp soak.
Suitable for glass or ceramics use.
Soak times up to nearly 100 hours.
Ramp rates from 1 to 999°C/hour full.
Program Pause & Segment Advance facilities.
Keypad lockable.

Kanthal A1 elements

The ARTIZAN range, along with the vast majority of Kilncare kilns, utilises Kanthal A1 elements (which are widely regarded as the best quality elements available), ensuring unbeatable reliability and durability.

Highly reliable three section seal

This massively improves heat retention.
The first section of the door seal is a machined insert in the brick lid that puts a brake on the heat before it reaches the second section, a traditional brick on brick contact.

The third step is maintained by non-ceramic fibre that is set into a channel around the front face, which ensures it stays in place, unlike other methods of "Stick on" fibre seals which often tend to fall off.

Robust front face

The Front Face itself is made from "Hard" insulation bricks to reduce the damage caused by knocks and bumps during loading.

All of the kiln doors in the ARTIZAN range are made of the same high grade insulation bricks as the chamber sides.

Permanent Seal Door Clamps

The actual sealing of the door is automatically adjusted every time the door is closed with the variable door clamps.

Lockable Door Vent Hole

The door vent hole has a lockable insulated stainless steel flap that provides a secure seal to the vent hole, erasing the need for a vent bung.

This availability to lock feature is a favourite of education establishments.

Stainless Steel Central Strip

Running up the centre of the kiln door, from just below the vent hole to the top of the door is a 100% 304 brushed stainless steel strip. Those of you who have owned and used a front-loading kiln for a number of years may have noticed a strip of heat and moisture damage appearing above your front vent hole, which could eventually lead to the compromised integrity of the metal in that location. This stainless steel strip combats this issue as it stays much more resilient in the face of the harsh elements.

Stainless Steel Louvred Top Plate

100% 304 brushed stainless steel is again used for the top plate of each ARTIZAN with long term durability in mind. Due to the heat that the top plate will be facing when the kiln is hitting those high temperatures, warping can be an issue. To prevent this, the top plate is louvred to provide extra stability.

Lowered Front Electrical Panel

Keeping the electrics a good distance away from the heat is paramount when striving for keeping electrical faults at a minimum in the long term. With this in mind, the front panel has been lowered from the bottom of the firing chamber in order to allow an air gap between the chamber and the panel, allowing for an even cooler electrical operation.

Stainless Steel Strip Covering Element Exits

For the same purpose as the door's stainless steel strip, all ARTIZANs will also have 100% 304 brushed stainless steel strips running the length of the element tail exits in the back of the kiln. There have been a number of instances where our engineers have had to resolve issues where these sections on older kilns have become critically compromised, and the placement of these strips are aimed to look after your kiln in the long term and prevent this from happening.

ARTIZAN stainless strip on blocks_edited

Over-fire and door switch safety

Each ARTIZAN has a door safety cut off switch along with a contactor door cut off circuit, which also acts as an over fire protection circuit. As well as this, there is also an extra control contactor, which in combination with the over fire contactor and door safety switch makes the kiln extremely safe.

Stainless Steel Protective Shelf

A huge killer of electrical components is dust, and the inside of a kiln's electrical panel can gather very large amounts of dust over years of use. Quite a bit of this can be from dust leaking from the element tail exists, therefore each ARTIZAN has a stainless steel protective shelf fixed below the element tail exits and above the rear electrical panel, protecting the electrics below.

Protective stainless steel shelf_edited.

Multi Zone Control and WiFi For The ARTIZAN 265

The KCR32ZWIFI is a multi-zone controller designed for use on our larger kilns where total evenness of chamber temperature is much more difficult to maintain through simple kiln design alone. The controller monitors one section of the kiln and adjusts the other sections to maintain perfect chamber uniformity with regards to temperature. Along with this, the ARTIZAN 265 will have two thermocouples inside the firing chamber, rather than just one.

Manually operated roof vents or optional automatic vents

The roof vent is operated by a manual stainless steel damper, automatic dampers are optional, and can be fitted to all ARTIZAN kilns.

This allows the roof vents to be opened and closed multiple times throughout the duration of the firing at the temperatures required.

The opening and closing cycle is programmed into the controller which enables the user to start the kiln then not have to return to it for any action other than monitoring until the cycle is finished. Extremely useful on larger models where firings can last for much longer.

Optional GATEway app and Wi-Fi capability (Standard on ARTIZAN 265)

The optional KCR32C WIFI allows the user to access the kiln in real time from anywhere through the GATEway mobile device app for Android or Apple, or anywhere with internet access via the Kilncare GATEway on our website. The benefits of this are obvious as there is no longer the need to travel to the studio or work place to see how the firing is proceeding or if indeed the firing is going as planned.

Also in the GATEway, which is unique to each user via password access, there is a firings library where past firings can be stored and named, a notes section and a log amongst other features.

2 year warranty

The ARTIZAN range comes with a 24 month warranty that applies for all parts excluding elements. The fact that we are able to offer this warranty on these kilns just goes to show how well made they are and how they are truly built to last.

Made In The UK

The ARTIZAN range, along with all other Kilncare kilns, is made right here at Kilncare, in Stoke-on-Trent, United Kingdom.

Unrivalled aftercare

Here at Kilncare we really do pride ourselves on our customer service. We have a team of kiln experts at hand that will be there for you whenever you find yourself with any queries or worries who will do their absolute best to ensure that you can continue your pottery journey as problem free as possible.

We really do go the extra mile when it comes to customer service, which you can see for yourself by taking a quick look at our online reviews.
