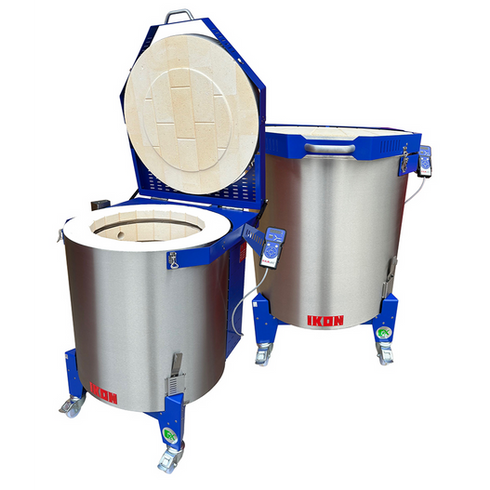

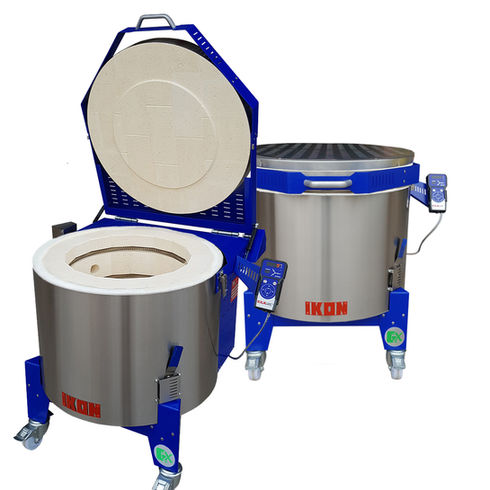

THE IKON RANGE
The IKON kilns are extremely efficient and utilise the Kilncare 2022 GX insulation system.
The IKON V46 can complete an average 1280c stoneware firing using only 18kWH.
When average just isn't good enough.
Kilns built in the heart of the potteries that have ceramics running through its
veins, this range is a dream for hobby-potters and professionals alike.
Hundreds of hours went into the design of the IKONs to ensure that they are
truly unmatched in terms of performance, reliability, longevity and structure.
From its uniquely recessed lid (helping to provide an ultra-reliable seal),
to its uniquely variable chamber exhaust that requires no bung, to the element power being kept in a separate panel from the main electrical components to ensure that the components are kept as cool as possible during the fire process, to the easy to use KCR32C controller (which also comes with an optional extra of Wi-Fi); the list of things that make this range truly premium goes on and on. As you can see, every little detail has been covered in ensuring that IKON is the pinnacle of plug-in pottery kilns.
But don't just take our word for it!
​
Along with the IKON range's rapid rise in popularity since its release in 2019, more and more potters around the world are enjoying the benefits of these cutting-edge top-loading kilns.
​
One potter of note is the wonderful Keith Brymer Jones, who is Head of Design at MAKE International, is the designer behind the Keith Brymer Jones Word Range, and also very well known for his work as a judge on The Great Pottery Throw Down.
​
Here is what he has to say about his experience with his IKON V46 and Kilncare:
"I have to say it's brilliant. The firing ramp is very accurate, and the insulation is mind-blowing. I love it when you meet people with a passion".
IKON V46​
Internal size 416mm (Diameter) x 330mm (Height)
External Size 725mm (wide) x 870mm (deep) x 775mm (High)
*Width becomes 890mm if controller is added on the side*
Capacity 46Lts
Weight 88kg
Power 3KW
Amps 12.6A
Voltage 230v
Maximum Temperature 1315c
Controller included KCR32C (KCR32C WIFI optional)
Provided with U.K. three pin plug top and 2m lead.
​
​
​
​
IKON V61E
Internal size 416mm (Diameter) x 445mm (Height)
External Size 735mm (wide) x 870mm (deep) x 890mm (High)
*Width becomes 890mm if controller is added on the side*
Capacity 61Lts
Weight 105kg
Power 3KW
Amps 12.6A
Voltage 230v
Maximum Temperature 1200c
Controller included KCR32C (KCR32C WIFI optional)
Provided with U.K. three pin plug top and 2m lead.
​
​
​
IKON V61GXR
Internal size 416mm (Diameter) x 450mm (Height)
External Size 735mm (wide) x 870mm (deep) x 920mm (High)
*Width becomes 890mm if controller is added on the side*
Capacity 61Lts
Weight 105kg
Power 3KW
Amps 12.6A
Voltage 230v
Maximum Temperature 1300c
Controller included KCR32C (KCR32C WIFI optional)
Provided with U.K. three pin plug top and 2m lead.
IKON V61
Internal size 416mm (Diameter) x 445mm (Height)
External Size 735mm (wide) x 870mm (deep) x 890mm (High)
*Width becomes 890mm if controller is added on the side*
Capacity 61Lts
Weight 105kg
Power 3.6KW
Amps 15A
Voltage 230v
Maximum Temperature 1315c
Controller included KCR32C (KCR32C WIFI optional)
Provided with 2m lead and requires electrician to connect to single phase supply.
​
​
​
IKON V61X
Internal size 416mm (Diameter) x 445mm (Height)
External Size 735mm (wide) x 870mm (deep) x 890mm (High)
*Width becomes 890mm if controller is added on the side*
Capacity 61Lts
Weight 105kg
Power 5KW
Amps 20.5A
Voltage 230v
Maximum Temperature 1315c
Controller included KCR32C (KCR32C WIFI optional)
Provided with 2m lead and requires electrician to connect to single phase supply.
​
The KCR32C is multi-program controller designed for glass, ceramics & pottery use. It is targeted towards glass use with 32 programs each of up to 32 segments. Each segment is a controlled heating/cooling ramp followed by a soak. It is supplied pre-programmed with 9 typical glass programs and 9 typical ceramics programs (which can be over-written).
The slow rate capability of the KCR32C, down to 1c per hour, makes it the perfect controller for complicated glass cycles.
KCR32C Controller features:
​
-
32 programs - each with up to 32 segments.
-
Each segment is a controlled heating/cooling ramp soak.
-
Suitable for glass or ceramics use.
-
Soak times up to nearly 100 hours.
-
Ramp rates from 1 to 999°C/hour full.
-
Program Pause & Segment Advance facilities.
-
Can be held remotely, allowing for an easy and comfortable programming process.
-
Keyboard lockable.
-
Delayed start facility - up to 4 days.
-
Power failure recovery.
-
Energy used display.
-
Event / Damper / Fan relay output.
-
Alarm relay with alarm buzzer.
-
Mains power switch.
-
Built in the United Kingdom.
KCR32C WIFI Controller (Optional)
​
The KCR32CWIFi is internally the same as the KCR32C but has the capability to be accessed
and controlled remotely from your mobile device.
This is one of the most important advances in Kilncare kilns for many years.
Using Kilncares GATEway access site you can view how your kiln is running in real time. Stop the
firing or adjust programs all without even being in the same country let alone the same room.
The KCR32WIFI is also fitted with a USB port that allows programs to be entered that way direct from PC if required and also allows us to apply updates and run diagnostics without travelling to your kiln.
Internet access to view real time status and access data
​
The optional KCR32C WIFI allows the user to access the kiln in real time from anywhere with internet access via the Kilncare GATEway on our website. The benefits of this are obvious as there is no longer the need to travel to the studio or work place to see how the firing is proceeding or if indeed the firing is going as planned.
Also in the GATEway, which is unique to each user via password access, there is a firings library where past firings can be stored and named, a notes section and a log amongst other features.
​
13A Plug-in Supply (for the V46, V61E and V61GXR models)
The IKON V46, V61E and V61GXR come with a standard 13A plug and lead, allowing for you to simply plug it into the wall and get firing without having to worry about getting the kiln hardwired in! This also makes relocation a lot easier as you will just need to make sure that wherever it is going to has a socket.
Unique machined lid insert of three section seal
The IKON has a unique three section lid seal that massively improves heat retention.
The first section is a machined insert in the brick lid that puts a brake on the heat before it reaches the second section, a traditional brick on brick contact which is what the majority of top loaders rely on as their only seal.
Section three is an outer lining of extremely low thermo-conductive fiber around the outside of the chamber that traps in any remaining heat that makes it through the first two sections of the seal.
This then gets taken one step further with the IKON V61GXR, which has an additional lid add-on that consists of GX Micropore "super" insulation, enclosed in a wrap of 100% 304 brushed stainless steel.
Excellently insulated chamber
The IKON's chambers consist of three layer chamber insulation, including GX Micropore “super” insulation (the IKON V61GXR has even more of this GX insulation, allowing it to perform so well for such a large plug in kiln). This is yet another feature of the IKON that contributes greatly to the range's immense efficiency.
Furthermore, at the bottom there is also double layer floor insulation with full stainless steel under plate.
Twin lid clamps
Keeping the lid and chamber securely sealed during firings is twin lid clamps on either side to keep even lid pressure when closed, along with padlock locking facility.
Chamber exhaust shutter.
​
Whilst chamber exhausts are common place on top loaders, the IKON is unique as it has a shutter that can vary the effectiveness of the exhaust, which is also larger than most, as well as close it all together when the efficiency of the kiln is most needed. This increases the efficiency of the kiln as it retains its heat when it most needs it.
Lower inlet
To combine with the upper outlet chumney, the IKON features a lower inlet port with a shutter raised from the kiln floor to avoid debris blockage.
Low level cool power panel, separate from element panel
The electrical components of the kiln are mounted at the rear of the kiln at low level, which keeps them distanced from the heating elements which are held in a separate panel, contrasting many of it's competitors. The mounting panel is highly ventilated and there is also an air space between the panel and the kiln chamber.
This ensures that the electrical components of the kiln are kept at minimum temperature which in turn vastly extends the life span of the components.
​Stainless Steel chamber and lid
​
The IKON's chamber and lid are 100% 304 brushed stainless steel. This provides the kiln with a strong, resilient body that will be able to face the heat for much longer without the integrity of the metal becoming compromised due to rust.
​​
Twin gas spring lid lifts.
The lid of the IKON is lifted with a gas spring on either side so that the pressure of lifting the lid is even across it and so vastly reducing twist and cross pressure on the brickwork. As mentioned previously, this is helped by the skeleton sub frame.
Twin gas springs ensure that the lid weight is counteracted to such a degree that even if the lid is accidentally knocked whilst in the vertical position, its decent will be controlled and not reult in brickwork damage.
​Over-fire and door switch safety
Each IKON consists of a dual channel lid safety cut off switch along with a dual contactor lid cut off circuit, which also acts as a dual contactor over fire protection circuit, making the kiln extremely safe.
Strong skeleton sub frame.
​
The IKON is ultra strong due to the skeleton sub frame that the chamber sits on. A common issue with top loaders is the pressure and movement that is generated as the lid is open and closed and ultimately this will add strains to the chamber that can cause damage.
The skeleton sub frame effectively leaves the chamber free to sit there and simply do its planned job of heating the ware inside whilst the skeleton does all of the physical work.
Lockable swivel castors
​
The kilns that fall under the IKON range all feature 2 heavy duty swivel castors at the front, along with two solid castors at the rear. This makes movement of the kiln much easier than some of its rivals.
​Kanthal A1 elements
The IKON range, along with the vast majority of Kilncare kilns, utilises Kanthal A1 elements (which are widely regarded as the best quality elements available), ensuring unbeatable reliability and durability.
Solid state relay control switching
​
Inside the panel is the Solid State Relay which enables the kiln to have optimum control and due to there being no moving components in the Solid State Relay, there is no wear so ensuring maximum reliablity. No moving parts also means that the kiln is near silent in operation apart from the traditional buzz of the elements.
Optional kiln Furniture Set
​
The optional kiln furniture set comprises of (V46) 2 shelves of 368mm, 3 props of 25mm, 3 props of 50mm, 3 props of 75mm and three props of 100mm or (V61) 3 shelves of 368mm, 3 props of 25mm, 3 props of 50mm, 3 props of 75mm and three props of 100mm
Optional Wi-Fi compatibility
​
The optional KCR32C WIFI allows the user to access the kiln in real time from anywhere with internet access via the Kilncare GATEway on our website. The benefits of this are obvious as there is no longer the need to travel to the studio or work place to see how the firing is proceeding or if indeed the firing is going as planned.
Also in the GATEway, which is unique to each user via password access, there is a firings library where past firings can be stored and named, a notes section and a log amongst other features.
​
3 Year Warranty
The IKON range comes with a 3 year warranty that applies for all parts (excluding elements). The fact that we are able to offer such a long warranty on these kilns just goes to show how well made they are and how they are truly built to last.
Made In The UK
The IKON range, along with all other Kilncare kilns, is made right here at Kilncare, in Stoke-on-Trent, United Kingdom.
Unrivalled aftercare
Here at Kilncare we really do pride ourselves on our customer service. We have a team of kiln experts at hand that will be there for you whenever you find yourself with any queries or worries who will do their absolute best to ensure that you can continue your pottery journey as problem free as possible.
We really do go the extra mile when it comes to customer service, which you can see for yourself by taking a quick look at our online reviews.
