MAG GRINDERS
The MAG range of Flatbed glass grinding machines are designed from the bottom up to perform to the highest standards and with the highest reliability by ironing out the common mistakes made over the years with other flat bed grinders from elsewhere.
We have used our considerable experience in the glass field and with the help of recognized industry leaders to produce a UK built flatbed glass grinder.
MAG / KFB Specifications
MAG30
Disc Size 300mm
External Size 550mm (wide) x 470mm (deep) x 1070mm (High)
Power 0.37KW
Amps 1.5A
Voltage 230v
13A plug Yes
MAG45
Disc Size 450mm
External Size 650mm (wide) x 780mm (deep) x 1070mm (High)
Power 0.75KW
Amps 3.15A
Voltage 230v
13A plug Yes
MAG60
Disc Size 600mm
External Size 800mm (wide) x 930mm (deep) x 1070mm (High)
Power 0.75KW
Amps 3.15A
Voltage 230v
13A plug Yes
KFB30
Disc Size 300mm
External Size 550mm (wide) x 470mm (deep) x 1070mm (High)
Power 0.37KW
Amps 1.5A
Voltage 230v
13A plug Yes
KFB45
Disc Size 450mm
External Size 650mm (wide) x 780mm (deep) x 1070mm (High)
Power 0.75KW
Amps 3.15A
Voltage 230v
13A plug Yes
KFB60
Disc Size 600mm
External Size 800mm (wide) x 930mm (deep) x 1070mm (High)
Power 0.75KW
Amps 3.15A
Voltage 230v
13A plug Yes
KFB70
Disc Size 700mm
External Size 800mm (wide) x 930mm (deep) x 1070mm (High)
Weight 90kg
Power 1.5KW
Amps 6.3A
Voltage 230v
13A plug Yes
KFB version.
The KFB version is basically a MAG that is suitable for slurry/grit use rather than with magnetic discs.
The unit is identical in every way, as the MAG had all the features required for a grit grinder built in during design. By far the most important is the top bearing protection that stops not only water, but aggressive grit entering the bearing.

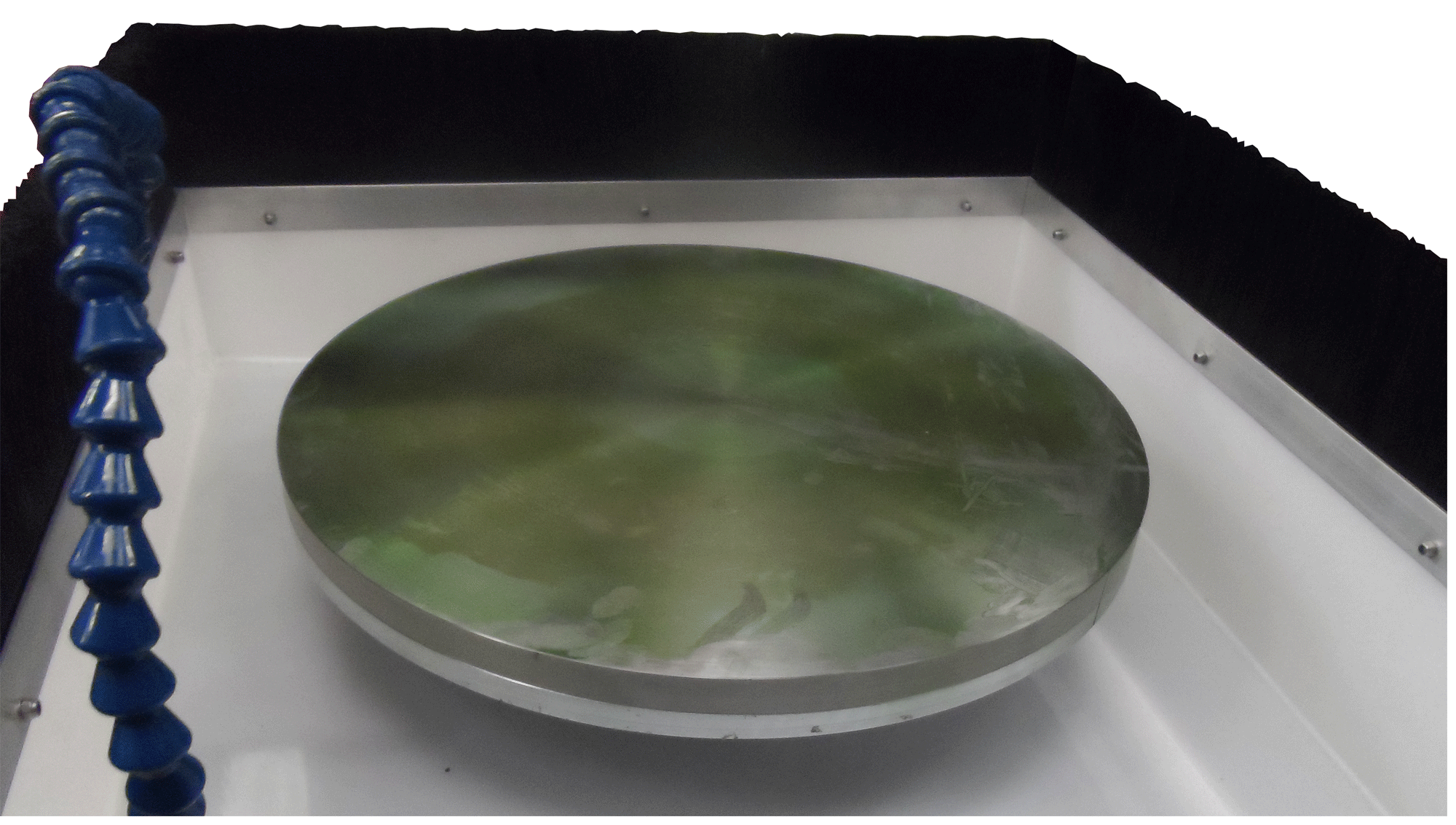

The wheel head on The KFB consists of a thick, steel wear plate surface that is ground flat during manufacture. As the head wears over time, it is easily removed for re-skimming or can simply be replaced by undoing 4 nuts under the boss wheelhead, no need for a machine strip down.
KFB steel, removable wear plate on top of boss wheelhead
-
Heavy steel framework, powder coated and oven baked.
-
Self aligning, sealed bearings.
-
Bearing water protection shield.
-
Cast iron wheel head.
-
Heavy duty motors with variable speed control. 100 -430 RPM at the disc.
-
Extremely quiet and smooth operation.
-
Foot pedal operation
-
Lock Load flexible water feed system with multiple nozzles.
-
Easy and precise water control valve.
-
Easy to connect to water supply with standard hosepipe clip-on fitting.
-
Ultra-strong Polypropylene tray with anti-spray, replaceable brush top.
-
Available for 30cm, 45cm and 60cm discs.
-
KFB versions available for slurry / grit up to 70cm head..
-
Can be used from any 13amp standard socket.
-
Designed by Kilncare and built in the United Kingdom. British built and fully CE compliant.
Lock Load flexible water feed with flow control and interchangeable nozzles.
The MAG has a cast iron wheel head to accept adhesive backed or magnetic grinding disks.
It is powered by an AC industrial motor through a V belt reduction drive and gearbox. Speed drive is controlled from a sophisticated AC inverter drive which gives a extremely smooth speed variation and high torque characteristics accompanied by extremely quiet operation.
The MAG has a lockload flexible water distribution system for connection to a mains water supply, which connects with standard clip-on hose pipe connector available from any DIY store.
The lockload system comes with three different nozzles to suit any application.
The water supply is accurately controlled with its lever control valve.
MAG Instruction Manual
